Key Features
Highly chemical resistant against a wide range of acids.
Exceptional strength under high stresses, even when submerged.
High-temperature resistance up to 700°C.
83% open area for reduced pressure drop and improved hydraulic efficiency.
Applications
Sulphuric Acid Towers

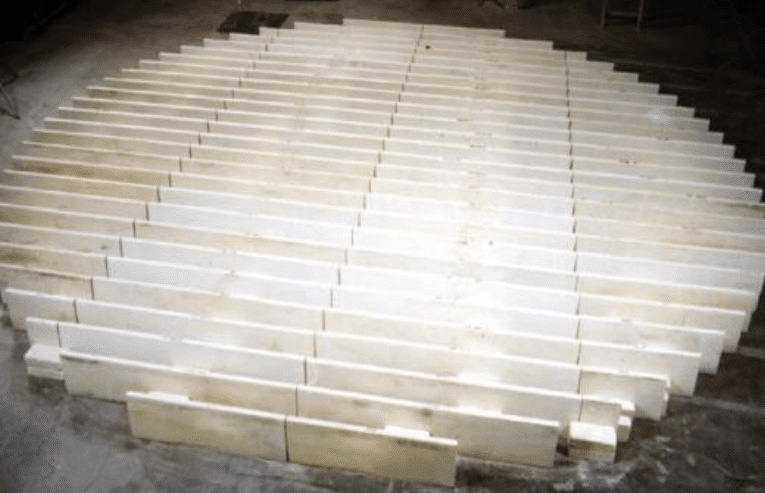

Grid Bars Range
The high strength Grid Bars at Lanexis are Ideal for use in sulfuric acid absorbers, coolers, and large-diameter towers, these grid bars feature an impressive 83% open area, effectively reducing pressure drop and maximizing hydraulic capacity for optimal performance in corrosive applications.
Designed for demanding chemical environments, Acid-Resistant Grid Bars from Lanexis offer exceptional resistance to corrosive acids, high temperatures, and mechanical stress.
Technical Specifications
The acid-resistant grid bars contain a minimum of 70% Al₂O₃ (Aluminum Oxide) and ZrO₂ (Zirconium Oxide), with 12-18% SiO₂ (Silicon Dioxide).
They have excellent acid resistance, with a rating of 98% or higher.
Water absorption is limited to 2% or less, making them suitable for use in harsh environments.
The bending strength of these bars is at least 1500 Kg/cm², ensuring resilience under stress.
The compressive strength is exceptionally high, exceeding 4800 Kg/cm².
The size tolerances are strict, with length variations of ±5.0 mm, width (thickness) tolerances of ±2.0 mm, and height variations of ±5.0 mm.
Warpage and deflections are minimal, with a perpendicularity tolerance of ±0.4%, ensuring precision in installation.
Sustainable, & reliable energy systems, Find Your Solution Now!
Features
Know More About
The Product
High Chemical Resistance:
These grid bars are highly resistant to a wide range of chemicals, including concentrated and oxidizing acids, with the exception of hydrofluoric acid.
Superior Strength:
Featuring excellent flexural and compressive strength, the bars can withstand stresses in harsh environments, even under immersion.
Temperature Endurance:
Capable of withstanding temperatures up to 700°C, these bars maintain their structural integrity in extreme conditions.
Lower Pressure Drop:
The 83% open area design significantly reduces pressure drop, improving hydraulic performance and system efficiency.
0
+
Years of Experience
0
+
Numbers of Customers Worldwide
0
+
Number of Projects Covered
0
Metric Tons of Carbon Emissions Reduction
Why Buy This Over Competition
Lanexis is an internationally trusted engineering company, offering comprehensive refractory, acidlining, and insulation solutions. Our technical team collaborates closely with customers to customize products for improved efficiency and cost-effectiveness. With professionally managed operations and swift response times, we provide seamless support from offers to after-sales service.
Active Customers
0
+
Technical Support?
Lanexis also provides design, engineering, and installation support worldwide.
Lanexis is Trusted By
Innovation and Excellence
Advantages at Lanexis
Comprehensive Protection:
Our Anti-Acid linings & corrosion resistant solutions are effective against a broad spectrum of acids and alkalis for reliable long-term performance. Our linings have been proven in various industries and used for decades under extreme conditions.
Customization:
If you have any specific requirements or duty conditions which need a customized lining for any demanding environments. We have solutions for corrosion protection under high temperature environments. We can customize linings to meet specific customer needs.
Technical Support:
We provide design, engineering, failure analysis- rectifications and corrosion audits. Whether you require inspection, supervision services for new linings or revamps, updated lining drawings- we provide complete technical support.
Contact Lanexis today for tailored Grid Bars solutions!
Reach out to Lanexis today for customized solutions designed to meet your unique requirements with top-notch quality and performance!
